ZAM CLASS A MONITOR, IDNET

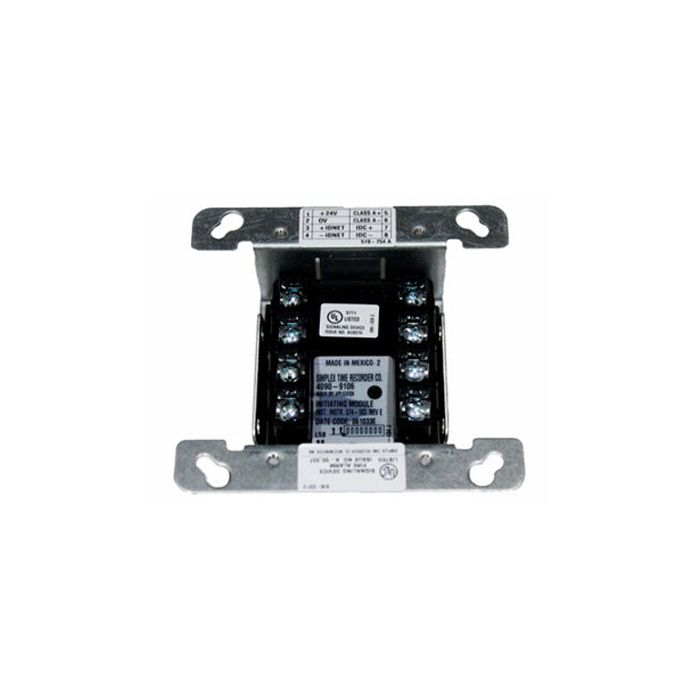

4090-9106 Simplex ZAM Class a Monitor, IDNET.
The 4090-9106 Simplex, IDNet/MAPNET II Monitor ZAMs allow a single addressable point to monitor a conventional initiating device circuit (IDC) populated with 2-wire or 4-wire initiating devices.

IDNet or MAPNET II communications compatible Monitor ZAMs (Zone Adapter Modules) provide man addressable interface to a conventional initiating device circuit (IDC)

Available for Class Class A IDCs:

• 4090-9106, Class A monitoring for 2-wire initiating devices.


• Zone device power is supplied separately (typically from the fire alarm control panel).

For use with the following Simplex® fire alarm control panels:

• Model Series 4007ES, 4008, 4010, 4010ES, 4100ES, and 4100U fire alarm control panels using IDNet communications.


• Model Series 4100/4100U, 4120, 4020, and 2120 Communicating Device Transponders (CDTs) equipped with MAPNET II communications.

Compact, sealed construction:

• Enclosed design minimizes dust infiltration.


• Mounts in standard 41/2 (102 mm) square electrical box.


• Screw terminals for wiring connections.
