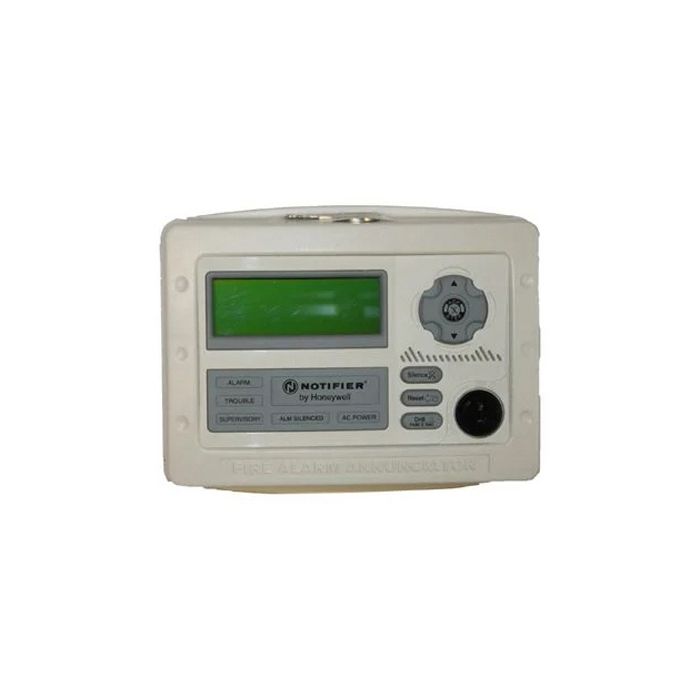

Fire-Lite ANN-80-W
SKU
ANN-80-W
80 CHAR LCD SERIAL ANNUNCIATOR, WHITE
Availability:
In stock
12 In Stock
Free Shipping on Orders over $250 to US Continental.
Free Returns No Restocking fee for 30 days.
80 CHAR LCD SERIAL ANNUNCIATOR, WHITE
The ANN-80-W Firelite annunciator is a compact, backlit, 80-character LCD fire annunciator that mimics the Fire Alarm Control Panel (FACP) display with a white enclosure.
It provides system status indicators for AC Power, Alarm, Trouble, Supervisory, and Alarm Silenced conditions.
The ANN-80-W Firelite and the FACP communicate over a two-wire serial interface employing the ANN-BUS communication format.
Connected devices are powered, via two additional wires, by either the host FACP or a remote UL-listed, filtered power supply.
Datasheet ANN-80-W.
> Main Features:
The ANN-80-W Firelite annunciator is a compact, backlit, 80-character LCD fire annunciator that mimics the Fire Alarm Control Panel (FACP) display with a white enclosure.
It provides system status indicators for AC Power, Alarm, Trouble, Supervisory, and Alarm Silenced conditions.
The ANN-80-W Firelite and the FACP communicate over a two-wire serial interface employing the ANN-BUS communication format.
Connected devices are powered, via two additional wires, by either the host FACP or a remote UL-listed, filtered power supply.
Datasheet ANN-80-W.
> Main Features:
- Listed to UL Standard 864, 9th Edition
- Backlit 80-character LCD display (20 characters x 4 lines)
- Mimics all display information from the host panel
- Control switches for System Acknowledge, Signal Silence, Drill, and Reset
- Control switches can be independently enabled or disabled at the FACP
- Keyswitch enables/disables control switches and mechanically locks annunciator enclosure
- Keyswitch can be enabled or disabled at the FACP
- Enclosure supervised for tamper
- System status LEDs for AC Power, Alarm, Trouble, Supervisory, and Alarm Silence
- Local sounder can be enabled or disabled at the FACP
- ANN-80 connects to the ANN-Bus terminal on the FACP and requires minimal panel programming
- Displays device type identifiers, individual point alarm, trouble, supervisory, zone, and custom alpha labels
- Time-and date display field
- Surface mount directly to wall or to single, double, or 4" square electrical box
- Semi-flush mount to single, double, or 4" square electrical box. Use ANN-SB80KIT for angled view mounting
- Can be remotely located up to 6,000 feet (1,800 m) from the panel
- Backlight turns off during AC loss to conserve battery power but will turn back on if an alarm condition occurs
- May be powered by 24 VDC from the host FACP or by remote power supply (requires 24 VDC)
- Up to eight ANN-80s can be connected on the ANN-Bus
