Fire-Lite ECC-CE6
SKU
ECC-CE6
CIRCUIT EXPANDER MODULE - PROVIDES CONNECTIONS FOR UP TO SIX STYLE Z (CLAS A) OR STYLE Y (CLASS B) SPEAKER CIRCUITS
Availability:
In stock
3 In Stock
Free Shipping on Orders over $250 to US Continental.
Free Returns No Restocking fee for 30 days.
CIRCUIT EXPANDER MODULE - PROVIDES CONNECTIONS FOR UP TO SIX STYLE Z OR STYLE Y SPEAKER CIRCUITS

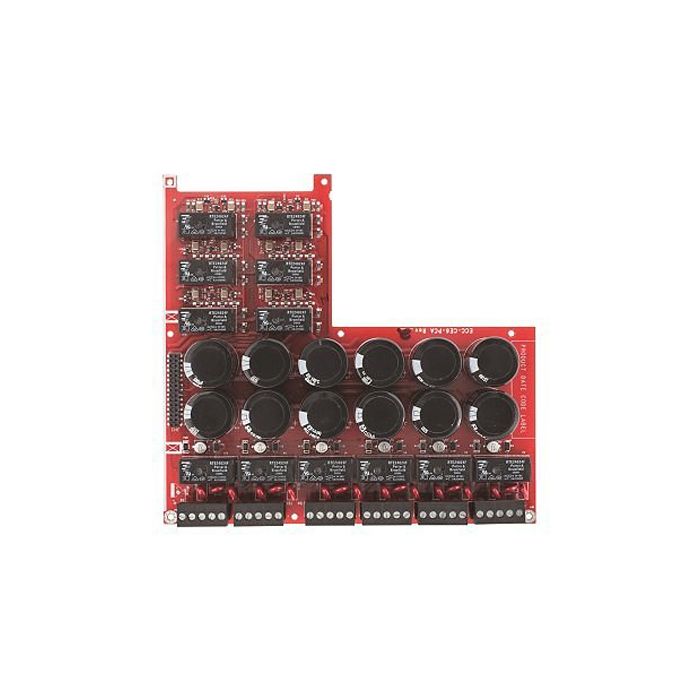

The ECC-CE6 Firelite is a circuit expander module that provides connections for up to six Style Z (Class A) or Style Y (Class B) speaker circuits.
The module circuits are configured through the web-based programming utility
ECC-CE6 Firelite Specifications
- Power-limited circuitry.
- Up to six (6) circuits on the ECC-CE6 can be wired as Style Y
(Class B) or Style Z (Class A).
- Normal Operating Voltage for Speaker Circuits: 25 VRMS @ 2.0
amps max. (Maximum Load Impedance of 12.5+).
- 70.0 VRMS @ 700 mA max. with maximum Load Impedance of
100+ operation possible for the primary circuit by plugging in an
optional ECC-XRM-70V conversion transformer into J12 of the
main control board. The same operation is possible for the
optional 50W amplifier by selecting the ECC-50W-70V model.
- Speaker circuit wiring is supervised during standby, background
music, and alarm.
- ECC-CE6 Firelite has an output Power of 50 watts total; Frequency Range: 400Hz -
4,000Hz.
- Maximum total capacitance: 250 µF. (Note that the total capacitance for the speaker outputs must not exceed the (more...)
The ECC-CE6 Firelite is a circuit expander module that provides connections for up to six Style Z (Class A) or Style Y (Class B) speaker circuits.
The module circuits are configured through the web-based programming utility
ECC-CE6 Firelite Specifications
- Power-limited circuitry.
- Up to six (6) circuits on the ECC-CE6 can be wired as Style Y
(Class B) or Style Z (Class A).
- Normal Operating Voltage for Speaker Circuits: 25 VRMS @ 2.0
amps max. (Maximum Load Impedance of 12.5+).
- 70.0 VRMS @ 700 mA max. with maximum Load Impedance of
100+ operation possible for the primary circuit by plugging in an
optional ECC-XRM-70V conversion transformer into J12 of the
main control board. The same operation is possible for the
optional 50W amplifier by selecting the ECC-50W-70V model.
- Speaker circuit wiring is supervised during standby, background
music, and alarm.
- ECC-CE6 Firelite has an output Power of 50 watts total; Frequency Range: 400Hz -
4,000Hz.
- Maximum total capacitance: 250 µF. (Note that the total capacitance for the speaker outputs must not exceed the (more...)
