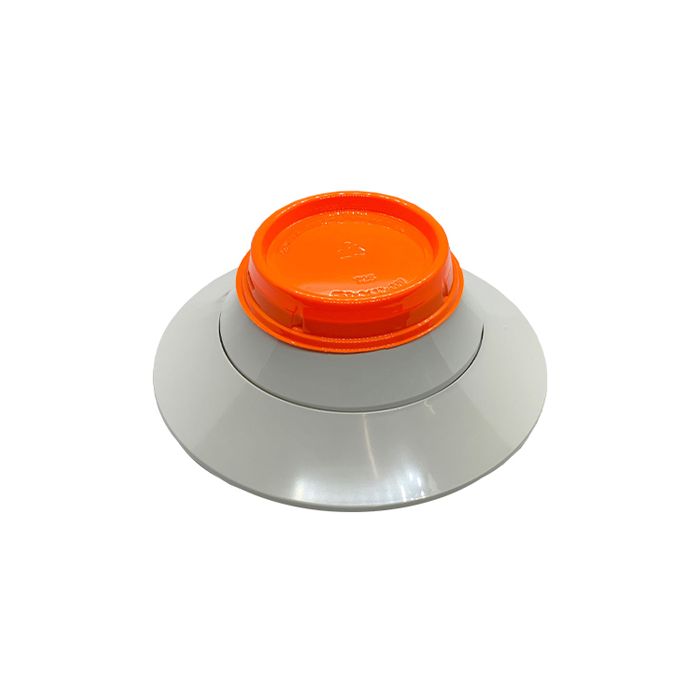

The FireLite® Alarms SD365(A), SD365R(A), and SD365HT(A) intelligent plug-in smoke detectors are designed for both performance and aesthetics, and are direct replacements for the SD355 Series. A new modern, sleek, contemporary design and enhanced optical sensing chamber is engineered to sense smoke produced by a wide range of combustion sources in accordance with more stringent code standards. Exclusively for use with FireLite’s addressable fire alarm control panels, the SD365(A) Series point ID capability allows each detector’s address to be set with rotary, decimal address switches, providing exact detector location for emergency personnel to quickly locate a fire during its early stages, potentially saving precious rescue time while also reducing property damage. Two LEDs on each sensor light to provide a local, visible sensor indication. The SD365(A) Series also offers 135°F (57°C) fixed temperature thermal sensing on the SD365T(A) and a remote test capable detector on the SD365R(A) for use with DNR(A)/DNRW duct smoke detector housings.


> COMPATIBLE BASES and ACCESSORIES:

— B300-6-IV: Ivory, standard flanged low-profile mounting base
— B501-IV: Ivory, standard European flangeless mounting base
— B200S-IV: Ivory, Intelligent, programmable sounder base
— B200SR-IV: Ivory, Intelligent sounder base for retrofit applications
— B200S-LF-IV: Ivory, Low Frequency Intelligent, programmable sounder base
— B200SR-LF-IV: Ivory, Low Frequency Intelligent sounder base for retrofit applications
— B224RB-IV: Ivory, plug-in System Sensor relay base
— B224BI-IV: Ivory, plug-in System Sensor isolator detector base — TR300-IV: Ivory, replacement flange for B210LP or B300-6 bases
— RA100Z(A): Remote 3–32VDC LED annunciator, mounts to a U.S. single-gang electrical box, for use with B501 and B300-6 bases.

NOTE: Replaces the SD355.
