OPTIONAL CLASS A OUTPUT CONVERTER MODULE.


Product Overview

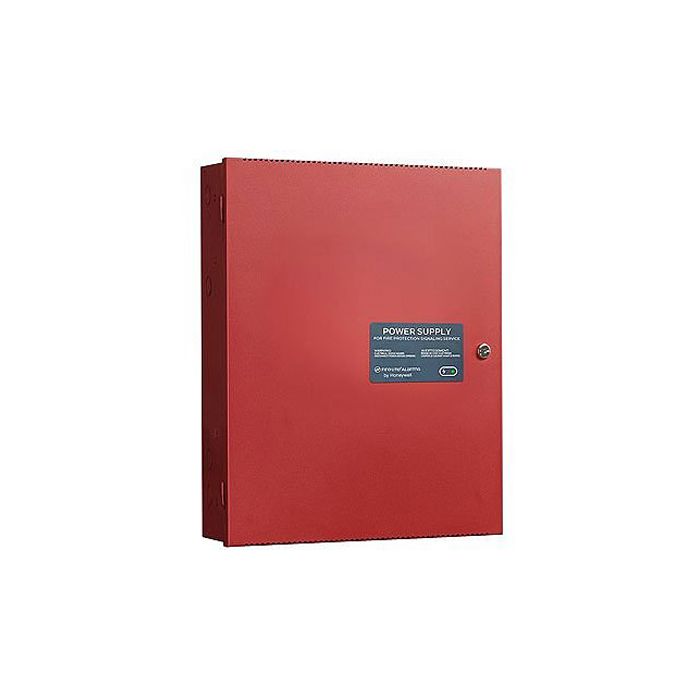

The PS Series is a remote power supply line from FireLite Alarms and is a direct replacement for the FCPS-24FS6/8 Series. The FLPS6(C) is a 6 amp and the FL-PS10(C) is a 10 amp, remote power supply with battery charger that may be connected to any 12 or 24 volt fire alarm control panel (FACP) or used as a standalone power supply. The PS Series provides 24 VDC power for NACs (notification appliance circuits) configured as either Class B or Class A (requires the ZNAC-PS option card) with multiple sync protocol options. The PS Series also provides auxiliary power, constant or resettable, suited for detectors, annunciators, door holders, and other fire alarm system peripherals. The PS Series cabinet can hold two 7 AH or 18 AH batteries and can charge up to 33 AH batteries in a separate cabinet.

Features

Up to five (6 amp model) or seven (10 amp model) independently-configurable, power-limited output circuits for:

Class B and/or Class A NACs

Class B and/or Class A resettable or non-resettable 24V auxiliary power

door holder power

Converts from Class B to Class A wiring without losing any outputs using the ZNAC-PS converter card (sold separately)

Optimal for powering four-wire smoke detectors, annunciators, and other system peripherals requiring regulated power

Configurable for ANSI® Temporal 3 or Temporal 4 coded output

UL-Listed NAC synchronization using System Sensor®, Wheelock®, Gentex®, or AMSECO® appliances

Synchronization can be triggered from FACP NAC/remote sync outputs, cascaded power supply, or a control module, single or multi, which may be housed within the power supply cabinet

Ability to cascade up to four power supplies

Two (6 amp model) or three (10 amp model) fully-isolated input/ control circuits which can be programmed to any output

Two Form C normally-closed trouble relays for AC Trouble and General Trouble, Ground Fault relay available on Canadian models only

6 or 10 amp full load output, respectively, with 3 A maximum/circuit

Individual NAC power and trouble LEDs for diagnostic efficiency

Trouble history modes for diagnostic support

Wide range end-of-line supervision value (normal: 2K-27K ohms)

Selectable earth fault detection (enable or disable)

AC trouble report delay timer

Completely configurable via onboard DIP switches, no extra software required

Self-contained in compact, locking cabinet constructed of heavy gauge steel with a corrosion-resistant powder coat chip and scratch-resistant finish

Cabinet designed with ten double knockouts and a removable door for ease of installation and wiring

Includes integral battery charger capable of charging up to 33 AH batteries

Cabinet can house two 7 AH or 18 AH batteries

Battery charger may be disabled via DIP switch for applications requiring larger batteries and external battery charger

Removable terminal blocks accommodate up to 12 AWG (3.1mm2) wire

Works with any UL 864 FACP which utilizes an industry-standard reverse-polarity notification circuit

Optional devices include addressable control, monitor, and relay modules and power-supervision relay (EOLR-1)

Main Features

Optimal for powering four-wire smoke detectors, annunciators, and other system peripherals requiring regulated power

Ability to cascade up to four power supplies

Self-contained in compact, locking cabinet constructed of heavy gauge steel with a corrosion-resistant powder coat chip and scratch-resistant finish

General Information

Name: Fire-Lite ZNAC-PS Class A Output Converter MOD-PS Series Power Supply, Honeywell International, Inc, Fire-Lite Alarms by Honeywell

Category: Fire-Lite Alarms by Honeywell, Fire, Fire Relays & Power, Power Supplies

UPC Code: 783008113322

Country of Origin: United States. Country of origin is subject to change.
