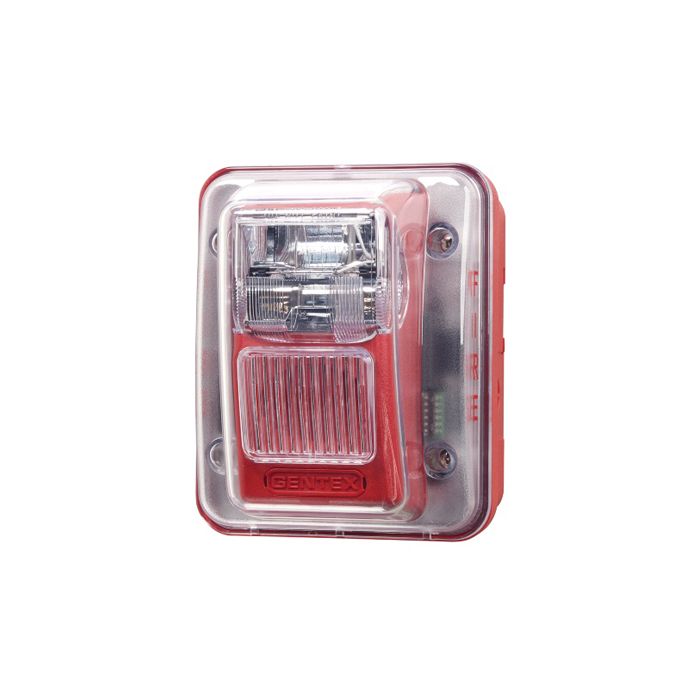

The Outdoor Commander Series is a outdoor listed strobe and horn/strobe comination that offers dependable visible and/or audible alarms for all outdoor needs. The WGE Series offers a fixed 75 candela strobe. The WGEC horn/strobe offers a continuous or synchable temporal 3 in 2400Hz, mechanical and chime as well as a whoop tone. All tones are easy for the professional to change in the field by the use of switches. Included with the WGE Series is the GOE or GOELP outdoor enclosure. The enclosure is made of high quality Lexan® material, providing protection from weather related conditions and allowing the necessary full candela output. This highly constructed enclosure meets various installation requirements including deterring moisture from entering the enclosures. The Outdoor Commander Series is equipped with a standard 4� mounting plate which incorporates the Super-Slide® feature that allows the installer to easily test for supervision. The product also features a locking mechanism which secures the product to the bracket without any screws showing. The WGE Series also features the Checkmate® instant voltage verification feature which allows the installer to check the voltage drop draw and match it to the blueprint. The WGE Series appliances are ANSI/UL 464, ANSI/UL 1638, CAN/ULC S525 and/or CAN/ULC S526 listed for use with fire protective systems and are warranted for three years from date of purchase. • Nominal voltage 24 VDC • Fixed 75 candela • GOE Unit Dimensions: 5.84� (14.83 cm) high x 4.81� (12.22 cm) wide x 4.22� (10.72 cm) deep • GOELP Unit Dimensions: 5.84� (14.83 cm) high x 4.81� (12.22 cm) wide x 3.25� (8.255 cm) deep • Super-Slide® - Ease of Supervision Testing • Checkmate® Instant Voltage Verification • Prewire entire system, install mounting bracket, then install signals • Input terminals accept 12 to 18 AWG • Horn/strobe switch selection for high or low dBA • Horn/strobe switch for 2400 Hz, mechanical, chime and whoop tones • Horn/strobe switch for continuous or temporal 3 (not available on whoop tone) • Synchronize strobe and/or horn by using Gentex AVSM Control Module • Silence audible while visual appliance will remain flashing • Tamperproof re-entrant grill and locking screw (optional use) • GOE/GOELP made of clear Lexan® - provides maximum visibility and reliability for effective visible signaling - allowing full 75cd output • Faceplate available in red or off-white • Wall mount
