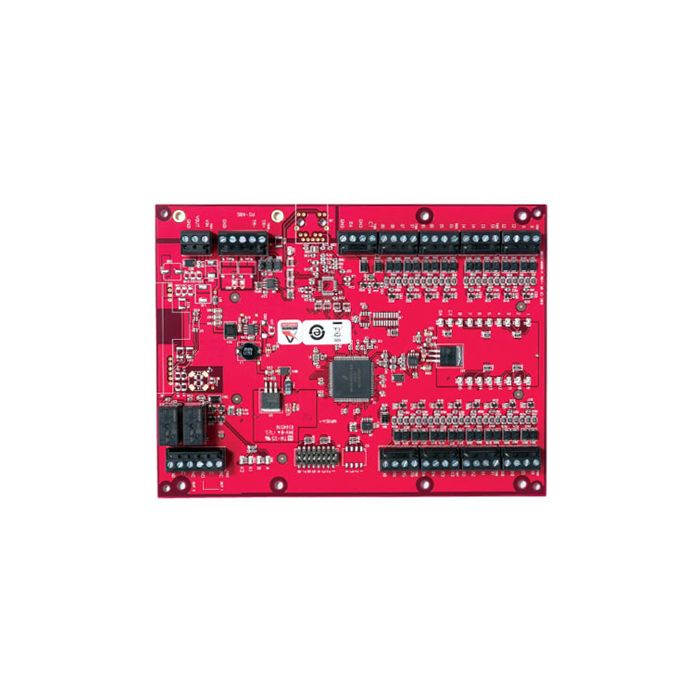

Series 3 Lenel® Input Control Module (ICM) provides the access control system with high-speed acknowledgement of critical alarm points in monitored areas. The ICM communicates directly with the Intelligent System Controller (ISC) by either 2-wire or 4-wire RS-485 communication. The ICM has 16 configurable input control points and 2 output control relays. It supports normally open, normally closed, supervised and nonsupervised circuits. The input circuits are scanned using an analog-to-digital converter. The digitized input status signal is software monitored and controlled, so that each input point can be programmed as a supervised or non-supervised alarm point. The output relays can also be configured for fail-safe or failsecure operation. Each realy supports the “On,” “Off,” and “Pulse” Lenel OnGuard® software commands. Specifications Operating voltage: 12 to 24Vdc ±10%, 350mA maximum - 12Vdc @ 300mA nominal, 12.27 BTUs - 24Vdc @ 220mA nominal, 18.00 BTUs Current consumption: 350 mA Dimensions: 152 x 203 x 25 mm Operating temperature: 0 to +70°C Relative humidity: 0 to 95% noncondensing
