Siemens XDLC
SKU
XDLC

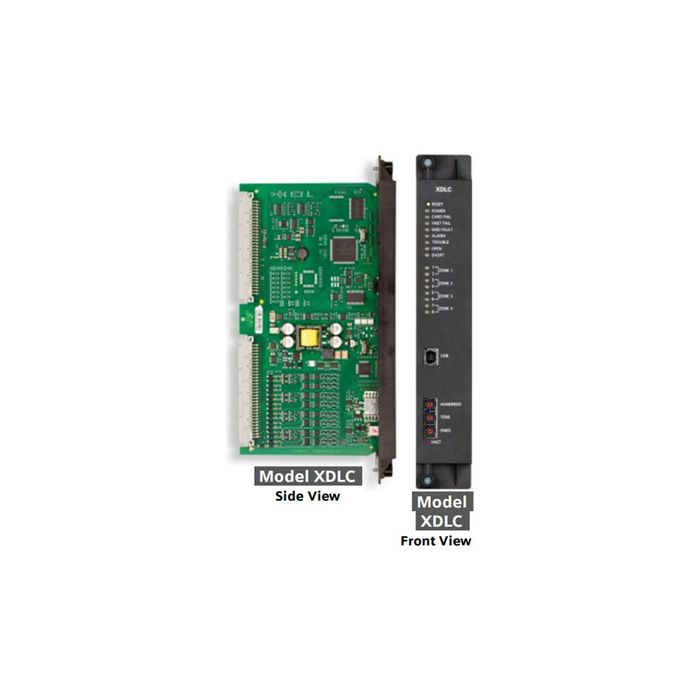

INTELLIGENT DEVICE LOOP CARD FOR MODULAR SYSTEMS (2 LOOPS/252 ADDRESSES TOTAL) ONE CARD SLOT CC-5/CC-2
Availability:
Call For Lead Time
Call For Lead Time
Free Shipping on Orders over $250 to US Continental.
Free Returns No Restocking fee for 30 days.
LOOP CARD, USED FOR CONNECTING SIEMENS ADDRESSABLE, INTELLIGENT Xft. AS WELL AS Hft.-SERIES DEVICES
The Siemens Fire Safety Class X' Device Loop Card (Model XDLC Siemens) is the interface used for connecting Siemens addressable, intelligent X' as well as H'-series devices.
Each Model XDLC plugs into one (1) slot of the Model CC-2 or Model CC-5 card cage. Programming for Model XDLC is accomplished via the Cerberus PRO Modular system custom-configuration tool, Zeus-C. Model XDLC takes one (1) address on the network, communicating up to a total of 252 detectors and devices. Model XDLC has 16 LEDs for diagnostic purposes and provides ground-fault detection and zone isolation circuitry.
Specifications
The Class X' Device Loop Card (Model XDLC) initializes, operates, and maintains all devices residing on up to four (4) Class A', eight (8) Class B' addressable circuits. Model XDLC communicates all relevant device and event data (Alarm', Trouble' and Supervisory' commands) to a Cerberus PRO Modular fire-alarm control panel (FACP), and supervises the device loop circuit.
Model XDLC is polarity insensitive via SureWire technology, which greatly reduces commissioning time normally spent tracing down crossed-fi(more...)
The Siemens Fire Safety Class X' Device Loop Card (Model XDLC Siemens) is the interface used for connecting Siemens addressable, intelligent X' as well as H'-series devices.
Each Model XDLC plugs into one (1) slot of the Model CC-2 or Model CC-5 card cage. Programming for Model XDLC is accomplished via the Cerberus PRO Modular system custom-configuration tool, Zeus-C. Model XDLC takes one (1) address on the network, communicating up to a total of 252 detectors and devices. Model XDLC has 16 LEDs for diagnostic purposes and provides ground-fault detection and zone isolation circuitry.
Specifications
The Class X' Device Loop Card (Model XDLC) initializes, operates, and maintains all devices residing on up to four (4) Class A', eight (8) Class B' addressable circuits. Model XDLC communicates all relevant device and event data (Alarm', Trouble' and Supervisory' commands) to a Cerberus PRO Modular fire-alarm control panel (FACP), and supervises the device loop circuit.
Model XDLC is polarity insensitive via SureWire technology, which greatly reduces commissioning time normally spent tracing down crossed-fi(more...)
