Silent Knight SK-RELAY
SKU
SK-RELAY
Intelligent Relay Module
Availability:
In stock
100+ In Stock
Free Shipping on Orders over $250 to US Continental.
Free Returns No Restocking fee for 30 days.
RELAY MODULE

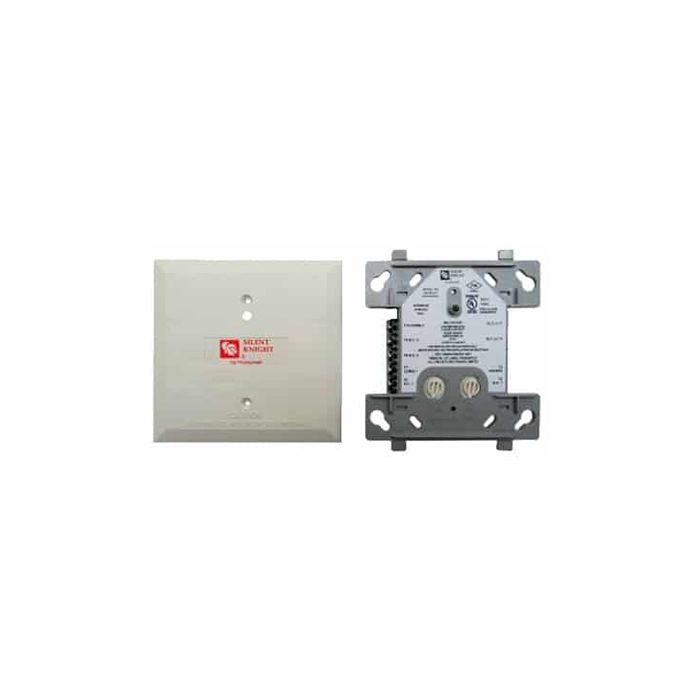

SK-RELAY Silent Knight Intelligent Relay Control Module.
The SK-RELAY Silent Knight is an addressable relay module for use with Honeywell Silent Knight Series fire alarm control panels (FACPs).
SK-RELAY allows a Silent Knight FACP to switch discrete contacts by code command. The relay contains two isolated sets of Form C contacts, which operate as a DPDT switch.
No supervision is provided for the notification appliance circuit. The SK RELAY contacts can be used for virtually any normally open or normally closed application.
Each SK-RELAY is programmed with a unique signaling line circuit (SLC) loop address. When an event occurs that controls the SK-RELAY Silent Knight, the relay is triggered by the FACP.
Installation
Electrical
> COMPATIBLE for use with the following IntelliKnight FACP’s:
— 5820XL
— 5820XL-EVS
— 5808
— 5700
— 5600 (Rev 2.0 or higher)
SK-RELAY Silent Knight Intelligent Relay Control Module.
The SK-RELAY Silent Knight is an addressable relay module for use with Honeywell Silent Knight Series fire alarm control panels (FACPs).
SK-RELAY allows a Silent Knight FACP to switch discrete contacts by code command. The relay contains two isolated sets of Form C contacts, which operate as a DPDT switch.
No supervision is provided for the notification appliance circuit. The SK RELAY contacts can be used for virtually any normally open or normally closed application.
Each SK-RELAY is programmed with a unique signaling line circuit (SLC) loop address. When an event occurs that controls the SK-RELAY Silent Knight, the relay is triggered by the FACP.
Installation
- The SK-RELAY mounts directly into a 41/2 square electrical box. The box must have a minimum depth of 2-1/81/2. A surface mounts electrical box (System SensorÃ''š® PN SMB500) is available from Silent Knight.
Electrical
- Operating Voltage: 15 32 VDC.
- End-of-Line Resistance: Not used.
- SLC Standby & Alarm Current: .255mA max @ 24VDC (one communication every 5 sec with LED enabled).
> COMPATIBLE for use with the following IntelliKnight FACP’s:
— 5820XL
— 5820XL-EVS
— 5808
— 5700
— 5600 (Rev 2.0 or higher)
