MAPNET II, 2 POINT/IO

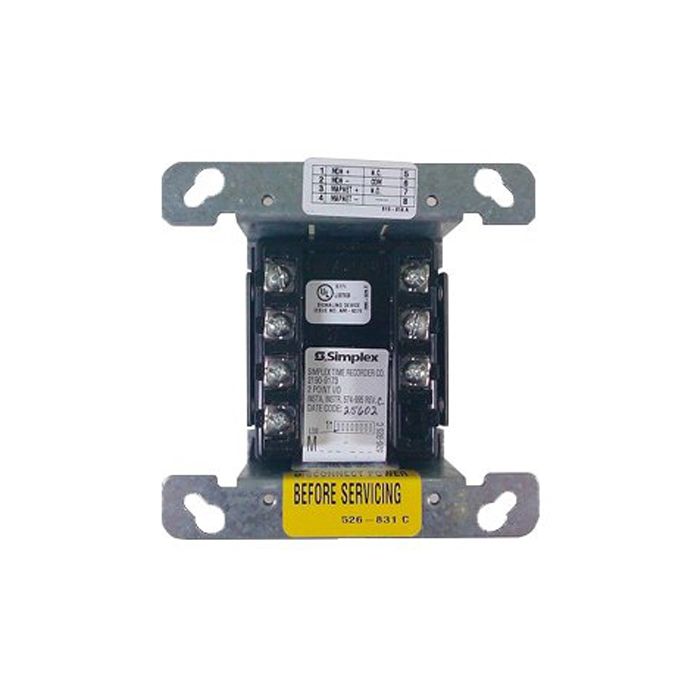

2190-9173 SIMPLEX, MAPNET II, 2 POINT/IO.
2-Point I/O Module. The 2190-9173, 2-Point I/O module allows a Simplex MAPNET II communication channel to monitor an input contact closure and control an output relay from a single compact module. Module power is supplied from the MAPNET II communications channel, eliminating the need for separate power wiring. Independent Operation.

The input and output are independent and operation is controlled by the host panel programming selection. Points may be directly associated to each other such as monitoring the status of the function controlled by the contacts, or may be programmed for unrelated operation.

MAPNET II addressable module providing a supervised input and a control relay output in one compact package:

• For use with Simplex® fire alarm control panels that provide MAPNET II addressable communications.


• Module uses two sequential addressable points with point designation requiring only one address selection.


• Low power latching relay design allows MAPNET II communications to supply both data and module power.


• Relay is set to OFF on initial power up and upon loss of IDNet communications.
