System Sensor B224RB was replaced by
System Sensor B224RB-IV
SKU B224RB-IV
System Sensor B224RB
SKU
B224RB
SENSOR INTELLIGENT RELAY BASE
Availability:
In stock
23 In Stock
Free Shipping on Orders over $250 to US Continental.
Free Returns No Restocking fee for 30 days.
SENSOR INTELLIGENT RELAY BASE

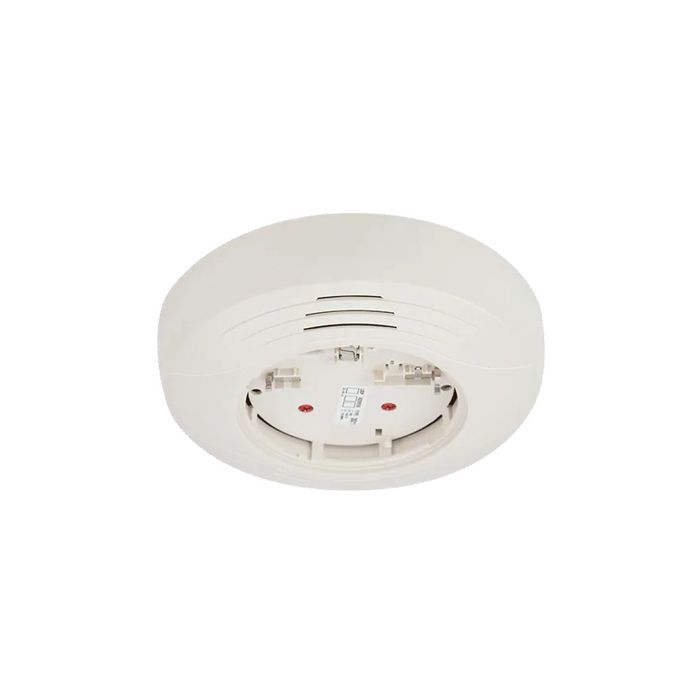

B224RB System Sensor Intelligent Relay Base.
The B224RB System Sensor intelligent relay base is intended for use in an intelligent system. Form C latching relay contacts are included for the control of an auxiliary function. The relay can operate in two different modes (short and long delay). The activation time when the short delay is used is 60 msec to 100 msec, while the activation time for the long delay is 6 sec to 10 sec.
A shunt with pin headers, located on the base PC board, can be used to choose your desired delay. B224RB is set at the short delay when manufactured. If you wish to use the long delay, please move the shunt to the adjacent pair of pin headers.
B224RB System Sensor Specifications
B224RB System Sensor Intelligent Relay Base.
The B224RB System Sensor intelligent relay base is intended for use in an intelligent system. Form C latching relay contacts are included for the control of an auxiliary function. The relay can operate in two different modes (short and long delay). The activation time when the short delay is used is 60 msec to 100 msec, while the activation time for the long delay is 6 sec to 10 sec.
A shunt with pin headers, located on the base PC board, can be used to choose your desired delay. B224RB is set at the short delay when manufactured. If you wish to use the long delay, please move the shunt to the adjacent pair of pin headers.
B224RB System Sensor Specifications
- Base Diameter: 6.85 in (17.4 cm).
- Base Height (less sensor): 1.61 in (4.1 cm).
- Operating Temperature Range: Refer to the applicable sensor Operating Temperature Range using the Base/Sensor Cross Reference Chart at systemsensor.com.
- Operating Humidity Range: 10% to 93% Relative Humidity (Non-condensing).
- Operating Voltage: 15 to 32 VDC
