System Sensor P2R
SKU
P2R

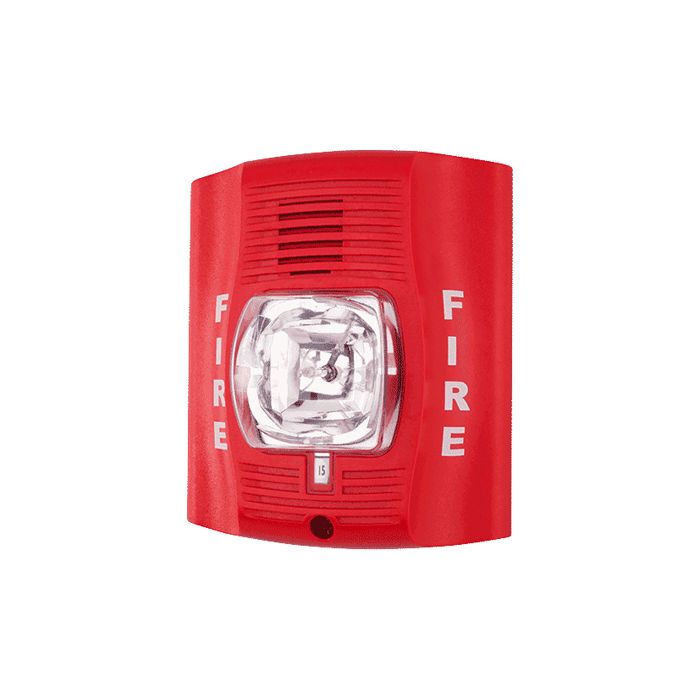

HORN STROBE, RED, WALL MOUNT, TWO-WIRE, FIRE LETTERING, STANDARD CANDELA
Availability:
Call For Lead Time
Call For Lead Time
Free Shipping on Orders over $250 to US Continental.
Free Returns No Restocking fee for 30 days.
HORN STROBE, RED, WALL MOUNT, TWO-WIRE, FIRE LETTERING, STANDARD CANDELA
Also known as: BK-P2R
SpectrAlert Advance horn strobes are rich with features guaranteed to cut installation time and maximize profits. Intended for full building notification as well as on the property ground, they produce a loud sound to notify occupants to evacuate the buildings; the strobe is intended to notify those that may have a hearing impairment.
Features include a universal mounting plate with a preliminary snap-in feature to hold the product in place for the screw attachment, 11 field-selectable candela settings, and rotary switches to select horn tone and volume settings. Compatible with 12- or 24-volt systems. SpectrAlert Advance horn strobes are listed to UL 1971 and UL 464 for public mode evacuation. Model numbers with a K suffix are outdoor products that are listed to UL 1638 and UL 464 for private mode evacuation. The outdoor products are rated from -40 F to 151 F (-40 C to 66 C) and have a NEMA 4X rating.
Technical Specifications:
Also known as: BK-P2R
SpectrAlert Advance horn strobes are rich with features guaranteed to cut installation time and maximize profits. Intended for full building notification as well as on the property ground, they produce a loud sound to notify occupants to evacuate the buildings; the strobe is intended to notify those that may have a hearing impairment.
Features include a universal mounting plate with a preliminary snap-in feature to hold the product in place for the screw attachment, 11 field-selectable candela settings, and rotary switches to select horn tone and volume settings. Compatible with 12- or 24-volt systems. SpectrAlert Advance horn strobes are listed to UL 1971 and UL 464 for public mode evacuation. Model numbers with a K suffix are outdoor products that are listed to UL 1638 and UL 464 for private mode evacuation. The outdoor products are rated from -40 F to 151 F (-40 C to 66 C) and have a NEMA 4X rating.
Technical Specifications:
- Color: Red
- Voltage: Regulated 12DC/FWR or regulated 24DC/FWR
- Candela: Selectable strobe settings of 15, 15/75, 30, 75, 95, 110 and 115 cd
- Operating Voltage Range: 8 to 17.5 V (12V nominal) or 16 to 33 V (24 nominal)
- DC Max. Operating Current: (see Data Sheet for complete current draw information)
- FWR Max. Operating Current: (see Data Sheet for complete current draw information)
- Wiring Gauge: 12 to 18 AWG
- Operating Temperature: 40F to 151F (40C to 66C)
- Humidity Range: 10 to 93% non-condensing
- Wall mount dimensions (including lens): 5.6"L 4.7"W 2.5"D (142 mm L 119 mm W 64 mm D)
Maximize Your Savings, Elevate Your Business:
Our Client Tier System is designed to reward you with better discounts as your business grows.
Every new account begins at our Base Tier, ensuring you receive value from your very first purchase.
As your yearly volume increases, so does your opportunity to save.
Streamline and Empower Your Business Operations
Our new B2B (Company) Accounts offer a comprehensive solution for companies seeking to streamline their procurement process and empower their teams.
With a B2B account on our website, your company can link multiple employee accounts under one central business panel. This integration provides a unified view of all transactions, invoices, and benefits, ensuring efficient management and coordination across your organization.
| Replaced By | P2RL |
|---|---|
| replacement | MASS2415ADAS / P121575 / P1224MC / P24110 / P2415 / P2430 PS121575ADA / PS1215ADA / PS24110ADA / PS241575ADA / PS2415ADA / PS2475ADA / RP121575ADA |
