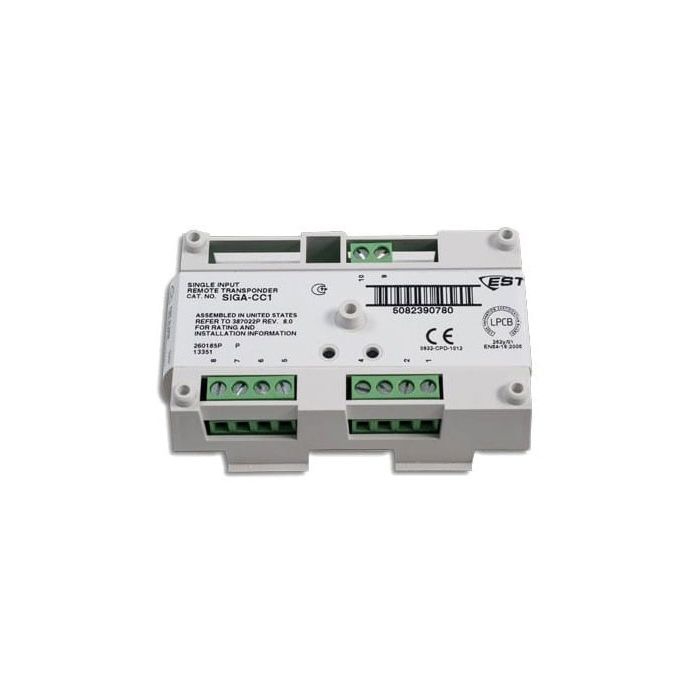

SINGLE INPUT SIGNAL MODULE


The SIGA-CC1 Single Input Signal Module is an addressable module that is used to connect the following circuits:

• Audible and visible notification appliance circuits (synchronized or unsynchronized)
• Speaker circuits
• Two-way telephone communication circuits (three-state or four-state) U

pon command from the loop controller, the module connects supervised Class B signal or telephone circuits to the respective riser input. The riser input can be 24 VDC (to operate polarized audible and visible signal notification appliances), 25 or 70 VRMS (to operate audio evacuation speakers), or firefighter telephones.

The module does not provide signal synchronization. To meet UL 864 requirements for horn and strobe signal synchronization, you must install a Genesis Signal Master module. The SIGA-CC1 module requires one address on the signaling line circuit (SLC). Addresses are assigned electronically. There are no address switches.

Diagnostic LEDs provide visible indication of the state of the module through the cover plate:

• Normal: Green LED flashes
• Alarm/active: Red LED flashes
